Camera test – Kodak No. 2 Folding Autographic Brownie

· camera testing,film photography,antique,kodak,Ilford

During March, April and May 2020 I have been taking cameras from my collection out to test how well they still work. I particularly enjoy taking out the older cameras in my collection, as they often completely surprise me with just how well they work.

Camera test – Kodak No. 2 Folding Autographic Brownie and Ilford HP5 medium format film roll

Camera details

This is an autographic camera, which was designed to take a particular Kodak film that allowed you to open a small door on the back of the camera and use the supplied stylus pen to inscribe with carbon paper a note or details about the photographs as they were taken.

This camera doesn't have a standard lens, and insead it is open so you can see (and touch if you wanted to) the aperture blades and shutter. It gives you a really close up view of how apertures work and able to very easily see the shutter fire.

The apertures on this camera don't have the standard numbers that became a common-place way of measuring and understanding exposures, and instead simply have four options numbered 1–4.

There are four shutter speed options, 1/25th, 1/50th, Bulb and Time, all of them are working smoothly.

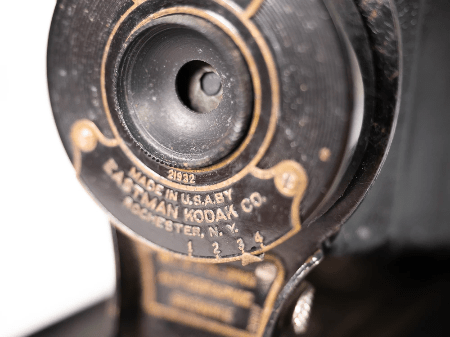

Kodak No. 2 Folding Autographic Brownie close up of the aperture options showing that they are unusually numbered 1 through 4 and don't have standard aperture numbers

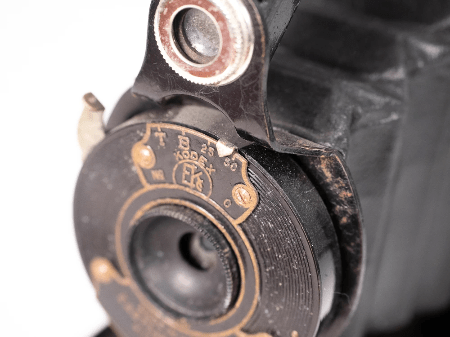

No. 2 Folding Autographic Brownie camera close up showing the shutter speed options

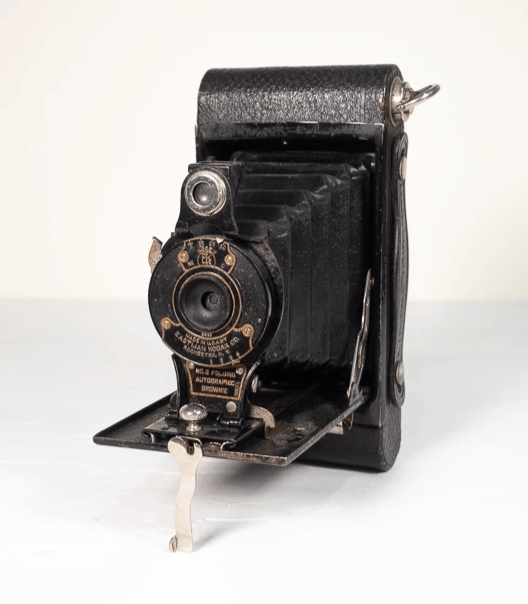

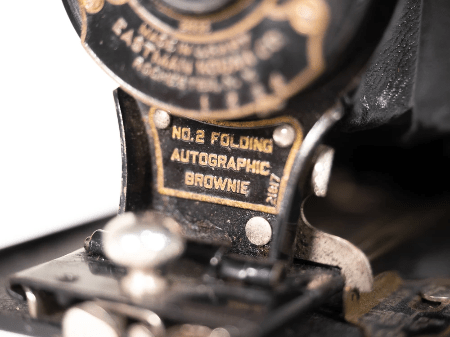

No. 2 Folding Autographic Brownie close up of the name plate on the camera

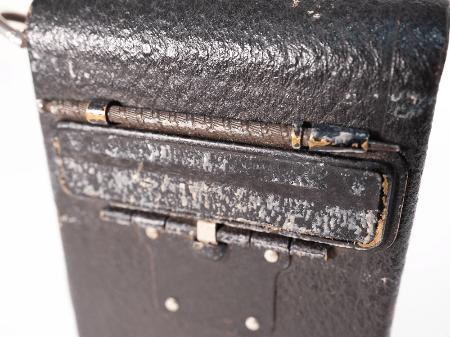

The back of the Kodak No. 2 Autographic Brownie showing where the autographic door and pen sit

Testing out the camera

This Kodak No. 2 Folding Autographic Brownie that I have owned for a number of years was one of those that surprised and delighted. I've always understood that the Kodak cameras where the lens is on the inside after the shutter and aperture aren't known to take quality photographs. However, this is the second of my cameras with this setup to provide great results.

I own a few autographic folding cameras, and this backdoor often causes issues with light leak. Therefore, I tend to add some tape across the back to block out some of the light (while trying not to damage the camera), and try not to keep the camera out in the light too much when I'm out shooting. I'll only get it out of the bag once I'm sure I'm ready to take the photograph, and pop it away as soon as I can. Only one of the photographs I took on the test roll showed signs of light leak, and only because I didn't put the camera away straight away between shots.

This particular camera doesn't have standard apertures, instead it uses the numbers 1-4. Therefore, as I could see the sized of the aperture changing as I moved the knob, I decided to eye-ball it and take a guess at what I felt was appropriate. The fastest shutter speed on the camera is 1/50th, although who knows how accurate this is after all these years. All photographs were taken in the middle of the day in full-sun. I used the sunny-16 rule as a guide, and selected what felt like an appropriate aperture for the ISO 400 film I had loaded.

I used around aperture no.4 for most of the shots, which looked to be around f/22 ish, maybe a bit higher.

I used Ilford HP5 developed in HC-110 dilution B for 5 minutes at 20c.

When I pulled the film out of the development tank, I was shocked. The shots were almost perfectly exposed, and pretty close to in focus across the entire roll. Nothing was over-lapping, no major light-leak (except the one from the autographic door).

For a 100 year old camera, it was amazing to see just what it still has to offer!

Sample photos

Street and windows taken on a Kodak No. 2 Folding Autographic Brownie
Grafitti, trolly, street sign taken on a Kodak No. 2 Folding Autographic Brownie
Row of old houses taken on a Kodak No. 2 Folding Autographic Brownie
broken image
broken image
Small building with three doors, taken on a Kodak No. 2 Folding Autographic Brownie
